Wide-Track Inner Bore Laser Cladding Head

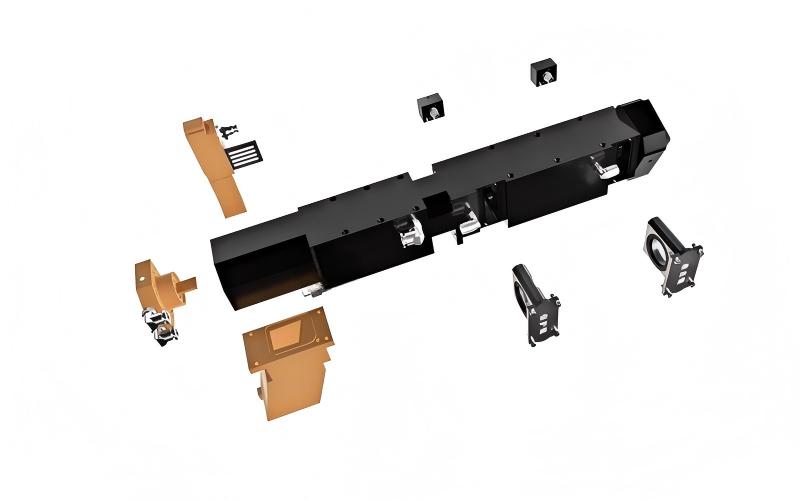

The Wide Beam DED Head for Internal Cylindrical Cladding features a reflective off-axis powder feeding design, optimized for internal surfaces with diameters ≥200 mm. Its rectangular wide beam ensures uniform energy distribution and powder utilization rates exceeding 95%, supporting a broad range of material hardness and high-strength coatings. The head also enables internal surface laser hardening, making it ideal for wear-resistant, impact-resistant, and demanding industrial applications, providing an efficient solution for internal surface enhancement and remanufacturing.

Chat Now Message Email

Details
Description

Spot Quality

Uniformity into a circular shape uniformity of energy distribution directly affects
Intelligent Control and Monitoring

Lens temperature, molten pool CCD vision,temperature, powder flow monitoring
Material Compatibility

Copper alloy and Titanium alloy, Iron-based, Nickel-based, Cobalt-based and other metal powders
Modular Design

The lens system, moritoring system and optical path system operate in a modular manner,making them easy to disassemble, maintain and service
Functionality

High-efficiency water cooling, spatter resistant, dustproof, water mist-resistant, low spare parts replacement, frequency sealing rating( e.g., IP65)
Safety

Equipped with high-temperature alarm, real-time protection of equipment stability and workpiece cladding quality.

Technical Parameters

Model	Performance Parameters
Power Options	6KW/12KW
Fiber Interface	LOE /QBH LOE
Spot Size	*216 326*
Outer Dimension(mm)	*44515065*
Machinable Inner Hole Diameter(mm)	≥¢200
Operating Wavelength(nm)	1080
Cooling Type	Water cooling
Water Quality Requirements	Pure water

Application scenario

Large-diameter bores

Hydraulic cylinder barrels

Oil & gas pipelines

Metallurgical rollers

Mining equipment

Thick internal coatings

FAQ

Q1: What is the minimum internal diameter this Wide Beam DED Head can access for internal cylindrical cladding?

A1: While exact minimum diameter depends on the specific head configuration, this wide beam DED head is specifically optimized for internal cylindrical cladding, designed to access confined bore spaces commonly

found in hydraulic cylinders, pipe interiors, and mining bushings. Its reflective off-axis powder feeding ensures a stable powder stream and uniform cladding layer even on deep or narrow internal surfaces.Please

contact our team with your specific bore size for compatibility details.

Q2: What is the powder utilization rate of this internal cladding head, and what materials can it apply to internal bore surfaces?

A2: This wide beam DED head achieves powder utilization rates ≥90% thanks to its reflective off-axis powder feeding design, minimizing waste— especially critical when working inside expensive components. It

supports iron-based, nickel-based, cobalt-based, copper, titanium alloys, and high-hardness carbide coatings, making it ideal for internal wear protection of hydraulic cylinder barrels, pipe inner walls, and other

cylindrical bores subject to abrasion or corrosion.
