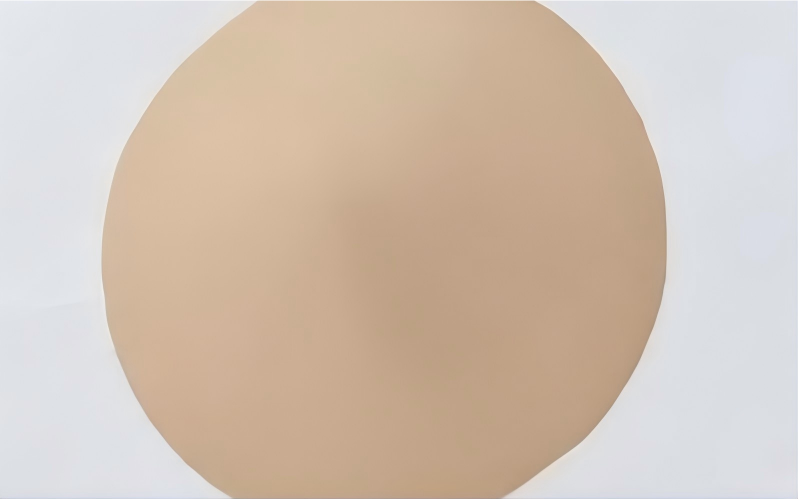

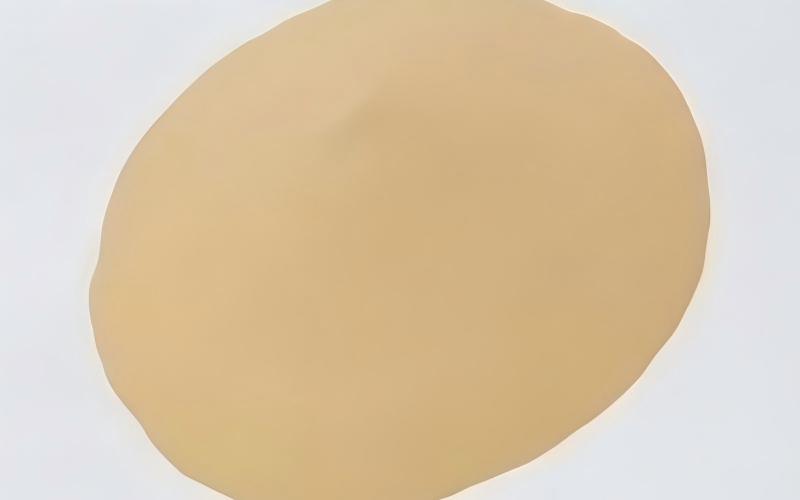

Cu-Based Laser Cladding Powder for Low-Friction Surface Repair

Copper-Based Alloy Powder is specially developed for laser cladding, Laser Metal Deposition (LMD), and Directed Energy Deposition (DED) applications.The product range includes aluminum bronze, tin bronze, and customized mixed copper alloys to meet different wear and repair requirements. Our copper alloy powders provide excellent wear resistance, corrosion resistance, and stable cladding performance. Aluminum bronze offers high hardness and outstanding corrosion protection, while tin bronze features excellent self-lubricating and anti-friction properties. Customized alloy formulations are also available for specific application needs. With optimized particle morphology and flowability, the powders produce dense, low-porosity coatings with strong metallurgical bonding. They support multi-layer, crack-free laser cladding, delivering reliable performance and extended service life for industrial components.

Chat Now Message Email

Description

Technical Parameters

Grade	Alloy composition (wt%)					hardness	Mature applications
Grade	Al	Sn	Ni	Other	margin	hardness	Mature applications
Aluminum Bronze Cu85	11.8	—	—	≤2.4	Cu	180~230HB	Inner wall of the hydraulic support cylinder
Tin Bronze Cu1202	—	12.2	2.0	≤2.9	Cu	120~140HB	Hydraulic piston guide sleeves, oil-free bearings for wind power applications
Hybrid type	≤14.0	≤14.0	≤80.0	custom made	Ni/Cu	70~260HB	Customized for the client

Product Features

1. Three Copper Alloy Powder Series

Our Copper Alloy Powders for Laser Cladding are available in three product series to meet different industrial requirements:

Aluminum Bronze Powder – High hardness, excellent wear resistance, and outstanding corrosion resistance.

Tin Bronze Powder – Superior self-lubricating properties with reduced friction for sliding and bearing applications.

Customized Hybrid Copper Alloy Powder – Tailor-made compositions offering a wide hardness range and application-

specific performance.

2. Optimized for Laser Cladding, LMD & DED

3. Excellent Wear Resistance

4. Superior Corrosion Resistance

5. Self-Lubricating & Low Friction Performance

6. Wide Hardness Range

7. Excellent Cladding Quality

8. Crack-Free Multi-Layer Deposition

9. Custom Alloy Development

As a direct manufacturer, we offer customized copper alloy powder formulations based on hardness, wear resistance,

corrosion resistance, friction characteristics, and specific working conditions.

Application scenario

Ideal for Component Repair & Surface Enhancement

Suitable for repairing and protecting critical industrial components such as:

Bearings Bushings Hydraulic Components Marine Parts Valve Components

Continuous Casting Molds Engineering Machinery Parts Oil & Gas Equipment
