100-Series Compact Coaxial Powder ID Cladding Head

100-Series Compact Coaxial Powder ID Cladding Head

The 4-Inch Coaxial Laser Processing Head for Internal Cladding is a reflective coaxial powder feeding system designed for narrow internal surfaces with diameters ≥100 mm. Featuring a four-way powder feeding configuration, it ensures uniform powder distribution and stable deposition performance. The head can be integrated with robotic arms for vertical surface and complex curved-surface cladding applications.
With low heat input and minimal thermal impact on the substrate, it produces low-distortion cladding layers with excellent surface flatness, making it ideal for high-precision remanufacturing and repair of small-diameter internal components.

Chat Now Message Email

Details
Description

Spot Quality

Uniformity into a circular shape uniformity of energy distribution directly affects
Intelligent Control and Monitoring

Lens temperature, molten pool CCD vision,temperature, powder flow monitoring
Material Compatibility

Copper alloy and Titanium alloy, Iron-based, Nickel-based, Cobalt-based and other metal powders

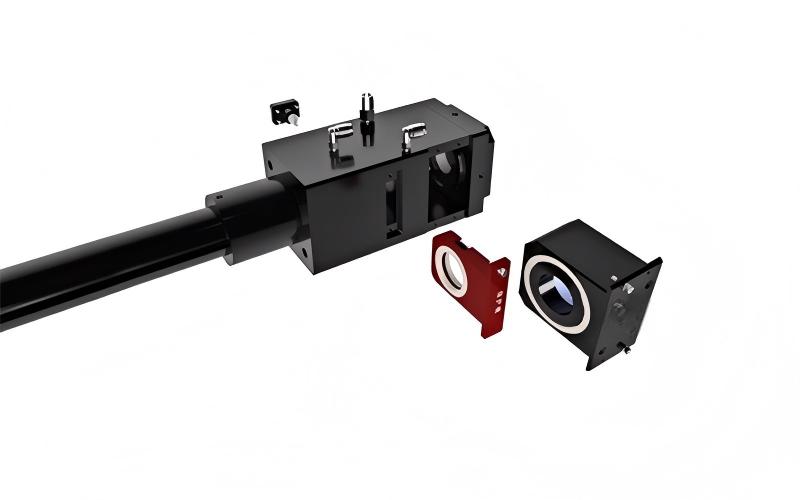

Modular Design

The lens system, moritoring system and optical path system operate in a modular manner,making them easy to disassemble, maintain and service
Functionality

High-efficiency water cooling, spatter resistant, dustproof, water mist-resistant, low spare parts replacement, frequency sealing rating( e.g., IP65)
Safety

Equipped with high-temperature alarm, real-time protection of equipment stability and workpiece cladding quality.

Technical Parameters

Model	Performance Parameters
Power Options	6KW
Fiber Interface	QBH
Spot Size	~ ¢4
Outer Dimension(mm)	*16008080*
Machinable Inner Hole Diameter(mm)	≥¢100
Operating Wavelength(nm)	1080
Cooling Type	Water cooling
Water Quality Requirements	Pure water

Application scenario

Hydraulic cylinders

Medium-size sleeves

Mechanical bushings

Bearing housings

Valve sleeves

Internal wear protection

FAQ

Q1: What is the minimum internal diameter this 4-inch coaxial laser processing head can access?

A1: This internal cladding head is specifically designed for narrow internal surfaces with a minimum diameter of 100 mm (approximately 4inches). The reflective coaxial powder feeding system with four-way powder

distribution ensures stable deposition even in confined bore spaces, making it ideal for high-precision remanufacturing and repair of small-diameter hydraulic components, pipe interiors, and mining bushings.

Q2: How does this internal cladding head prevent distortion on small-diameter or thin-walled components?

A2: The 4-inch coaxial head features low heat input design with minimal thermal impact on the substrate, producing low-distortion cladding layers with excellent surface flatness. This is critical for maintaining tight

dimensional tolerances on small-diameter internal components such as cylinder barrels, plunger bores, and precision hydraulic parts — where excessive heat could cause warping or loss of fit.
